a) Write about physical and chemical properties of concrete.

b) Explain the different types of stair case used in building construction with a neat sketch.

a) Explain the individual component of the Theodolite with a Sketch.

b) Narrate about the classification of stone used in construction industry.

a) Explain in brief with about the Remote sensing and its application in construction.

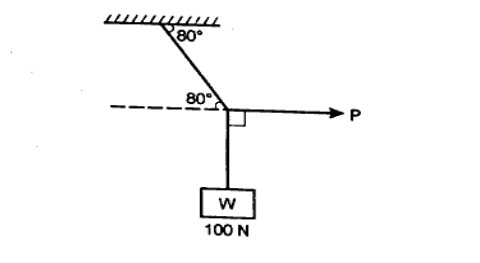

b) State and derive the Lami's theorem and solve the problem given below using the theorem.

a) Discuss us about the Contour line, Contour Interval, Horizontal Interval and Use of Contour Map.

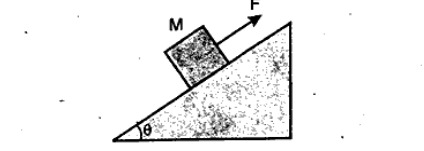

b) A block of mass M= 10 kg is sitting on a surface inclined at angle $\theta = 45^\circ$. Given that the coefficient of static friction is $\mu_s=0.5$ between block and surface, what is the minimum force F necessary to prevent slipping? What is the maximum force F that can be exerted without causing the block to slip?

a) Illustrate the difference between the Height of Collimation and Rise and Fall method.

b) The following are the consecutive reading were taken with a levelling instrument at intervals of 20 m.
2.375, 1.730, 0.615, 3.450, 2.835, 2.070, 1.835, 0.985, 0.435, 1.630, 2.255 and 3.630 m. The instrument was shifted after the fourth and eighth reading. The last reading was taken on a BM of RL 110.200 m. Find the RLS of all the point using Rise and Fall method and satisfy the answer with arithmetic Check.

a) Differentiate the difference between Moment of inertia and Product of inertia.

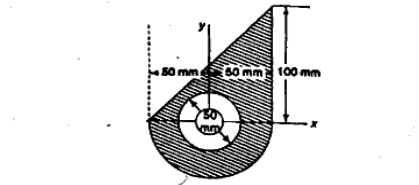

b) Calculate the Moment of inertia about the X-axis.

a) Write about the difference between Method of Joint and Method of Section.

b) Draw the Shear force and Bending moment diagram for the simple supported beam carries a Uniform distributed load of intensity "W" kN/m throughout a span of length "L" m.

a) Centroid and Centre of Gravity

b) 'Profile Cross- sectioning

c) Plane table and its used instruments
