AL-401 – Intro to Discrete Structure & Linear Algebra

Rajiv Gandhi Proudyogiki Vishwavidyalaya, Bhopal
New Scheme Based On AICTE Flexible Curricula
CSE-Artificial Intelligence and Machine Learning | IV-Semester

Syllabus Content & Previous Year Questions

Unit 1: Set Theory, Relation, Function, Theorem Proving Techniques


Set theory: definition of sets, Venn Diagram, proofs of some general identities on set, Relation: Definition, Types of relation, Composition of relation, Equivalence relation, Partial ordering relation, POSET, Hasse diagram and Lattice.



Previous Years questions appears in RGPV exam.

Q.1) If $A = \{2, 4, 6, 9\}$ and $B = \{4, 6, 18, 27, 54\}$, $a \in A$, $b \in B$, find the set of ordered pairs such that 'a' is factor of 'b' and $a < b$. (June-2023)


Q.2) Let R be the relation on the set R of all real numbers defined by a R b if and only if $|a - b| \le 1$ Then prove that R is reflexive, symmetric, but not transitive. (June-2023)


Q.3) Let $A = \{1, 2, 3, 4, 5, 6\}$ and a Rb if and only if a is multiple of b.
Find:
i) Domain
ii) Range,
iii) Matrix of a relation,
iv) Digraph of the relation R. (June-2023)


Q.4) What common relations on Z are the transitive closures of the following relations?
i) a Sb if and only if $a + 1 = b$,
ii) a Rb if and only if $a - b = 2$. (June-2023)


Q.5) Let $A = \{1, 2, 3, 4, 6, 8, 9, 12, 18, 24\}$ be ordered by divisibility. Draw Hasse diagram. (June-2023)


Q.6) Write short note on partially ordered sets and explain with suitable example. (June-2023)


Q.7) Write short Note on: Hasse diagram (June-2023)


Q.8) Write short Note on: Lattice (June-2023)


Q.9) Let T be the set of positive integers less than 10 and let "R be the relation on T defined by aRb if and only if $|a^2 - b^2|$ is a multiple of 5". Prove that R is reflexive, symmetric, but not transitive. (June-2024)


Q.10) Consider a set C = {1, 2, 3, 4, 5, 6, 8, 10, 12, 15} ordered by divisibility. Draw its Hasse diagram. (June-2024)


Q.11) Consider two sets A and B. Let $A = \{2, 3, 4, 5\}$ and $B = \{4, 5, 6, 7\}$ Using Venn diagrams, prove the following statements:
Prove that $(A \cup B) = A' \cap B'$.
Prove that $(A \cap B)' = A' \cup B'$. (June-2024)


Q.12) Let A be the set of even numbers between 10 and 20, and B be the set of multiples of 5 between 15 and 35. If $a$ is an even number from set A, and $b$ is a multiple of 5 from set B, find the set of ordered pairs such that '$a$' is a factor of '$b$' and $a$ is less than $b$. (Dec-2024)


Q.13) Consider the relation R on the set of integers Z defined by aRb if and only if $a^2 - b^2$ is divisible by 4. Determine the common relations on Z that are the transitive closures of R. (Dec-2024)


Q.14) Suppose that the relation R is irreflexive. Is $R^2$ necessarily irreflexive? Give a reason for your answer. (Dec-2024)


Q.15) Prove that:
i) $A - (B \cap C) = (A - B) \cup (A - C)$
ii) $A \times (B \cap C) = (A \times B) \cap (A \times C)$ (Nov-2023)


Q.16) With the help of Venn-diagram, prove that
$(A \cup B)' = A' \cap B'$ and $(A \cap B)' = A' \cup B'$ (Nov-2023)


Q.17) Consider the set Z of integers m > 1. We say that $x$ is congruent to $y$ modulo $m$ written as $x \equiv y \pmod m$
If $x - y$ is divisible by $m$. Show that this defines an equivalence relation on Z. (Nov-2023)


Q.18) Let $D_m$ denotes the positive divisors of $m$ ordered by divisibility. Draw the Hasse diagrams of the following:
i) $D_{15}$
ii) $D_{24}$ (Nov-2023)



Unit 2: Algebraic structure


Definition, Properties, types: Semi Group, Monoid, Groups, Abelian Group, Properties of group, cyclic group, Normal subgroup, Ring and Fields: definition and standard result, Introduction to Recurrence Relation and Generating Functions.



Previous Years questions appears in RGPV exam.

Q.1) Given the recurrence relation $a_n = a_{n-1} + 4a_{n-2}$ with initial conditions $a_0 = 2$ and $a_1 = 5$, determine the closed-form expression for the sequence. (June-2024)


Q.2) Show that the set $H = \{e, a, a^2, a^3\}$ is a subgroup of a group G where $G = \{e, a, a^2, a^3, b, ab, a^2b, a^3b\}$. (June-2024)


Q.3) Let (A, *) be a semigroup. Show that, for a, b, c in A, if $a * c = c * a$ and $b * c = c * b$, then $(a * b) * c = c * (a * b)$. (June-2024)


Q.4) Write short note on: Recurrence Relation (June-2024)


Q.5) Solve the recurrence relation $a_n = a_{n-1} + 6a_{n-2}$ given the initial conditions $a_0 = 3$ and $a_1 = 6$. (Dec-2024)


Q.6) Prove that a subgroup H of a group G is normal if and only if $xHx^{-1} = H, \forall x \in G$. (Dec-2024)


Q.7) Let G = {0, 1, 2, 3, 4, 5} with addition modulo 6. Is G a group? Justify your answer. (Dec-2024)


Q.8) Write short note on: Abelian group and cyclic group (Dec-2024)


Q.9) Consider the set Q of rational numbers and let * be the operation on Q defined by:
$a * b = a + b - ab$
i) Is (Q, *) a semi-group. Is it commutative.
ii) Find the identity element for *.
iii) Do any elements in Q have inverse? What is it? (Nov-2023)


Q.10) Define Ring with example. Also explain Commutative ring and ring homomorphism. (Nov-2023)


Q.11) Solve the following recurrence relations
$a_n = 3a_{n-1} - 3a_{n-2} + a_{n-3}, a_0 = 0, a_3 = 3, a_5 = 10$ (Nov-2023)



Unit 3: Propositional logic & Graph theory


Propositional logic: Proposition, First order Logic, Basic logical operation, Truth tables, Tautologies and Contradiction, algebra of proposition, logical implication, logical equivalence, predicates, Normal Forms, Quantifiers.
Graph theory: Introduction and basic terminology of graph, types of graph, Path, Cycles, Shortest path in weighted graph, graph colorings.



Previous Years questions appears in RGPV exam.

Q.1) i) Prove that $p \wedge q \Rightarrow q \vee p$ is a Tautology.
ii) Show that $(p \vee q) \wedge (-p) \wedge (-q)$ is a contradiction (June-2023)


Q.2) Prove that in any graph G, even number of vertices is of odd degree. (June-2023)


Q.3) Let G be a planar graph with 10 vertices, 3 components and 9 edges. Find the number of regions in G (June-2023)

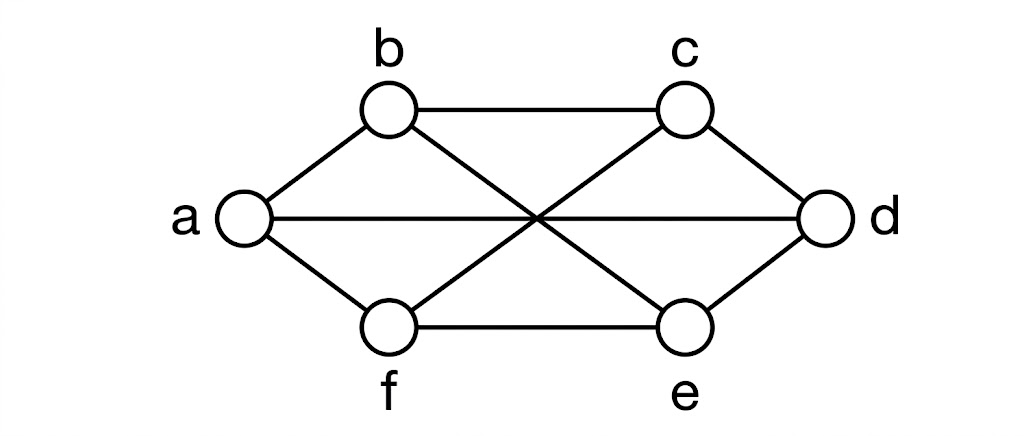

Q.4) Find chromatic number of the following graph-

An undirected graph with 6 vertices labeled a, b, c, d, e, f. The exact connectivity and edges between the vertices a, b, c, d, e, f define the graph structure for determining its chromatic number.

(June-2023)


Q.5) Write short Note on: Weighted Graph (June-2023)


Q.6) Let G be a simple graph. Show that the relation R on the set of vertices of G such that uRv if and only if there is an edge associated to (u, v) is a symmetric, irreflexive relation on G. (June-2024)

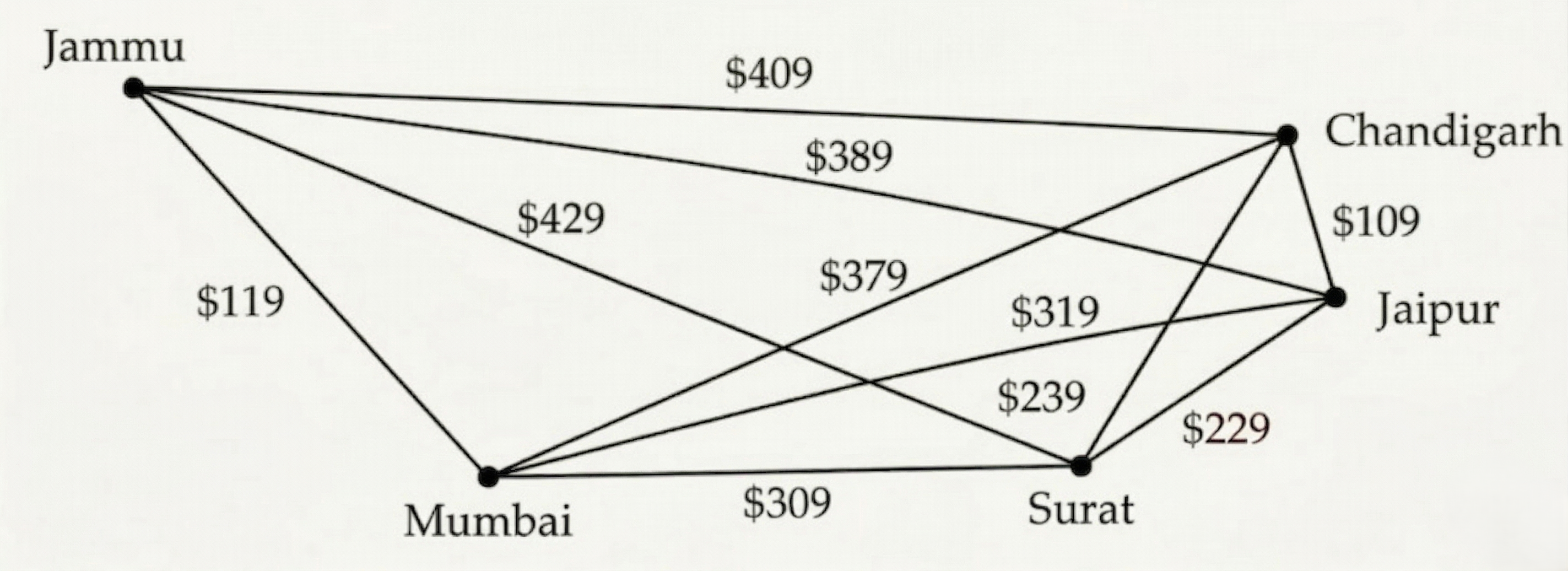

Q.7) Find a route with the least total airfare that visits each of the cities in this graph, where the weight on an edge is the least price available for a flight between the two cities.

An undirected complete graph with 5 vertices representing cities: Jammu, Chandigarh, Jaipur, Mumbai, and Surat. The edge weights representing flight prices are: Jammu to Chandigarh ($409), Jammu to Jaipur ($389), Jammu to Mumbai ($119), Jammu to Surat ($429), Chandigarh to Jaipur ($109), Chandigarh to Mumbai ($379), Chandigarh to Surat ($319), Jaipur to Mumbai ($239), Jaipur to Surat ($229), and Mumbai to Surat ($309).

(June-2024)

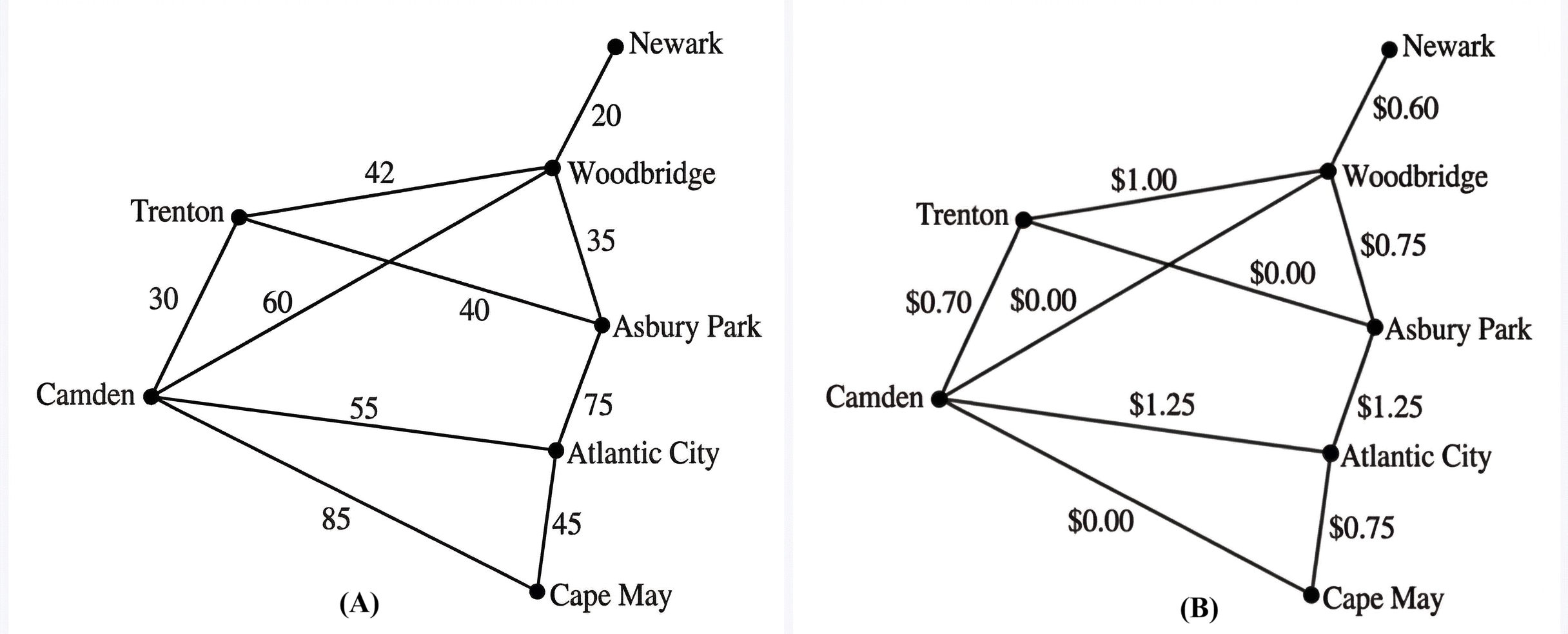

Q.8) The weighted graphs in the figures here show some major roads in New Jersey.
Part (A) shows the distances between cities on these roads; Part (B) shows the tolls.

Two undirected graphs of major roads in New Jersey with identical vertices and edges but different weights. The vertices are Newark, Woodbridge, Asbury Park, Atlantic City, Cape May, Trenton, and Camden. The edges are: Newark to Woodbridge, Woodbridge to Trenton, Woodbridge to Camden, Woodbridge to Asbury Park, Trenton to Camden, Trenton to Asbury Park, Camden to Asbury Park, Camden to Cape May, Asbury Park to Atlantic City, and Atlantic City to Cape May. In Part (A), the edge weights represent distances: Newark-Woodbridge (20), Woodbridge-Trenton (42), Woodbridge-Camden (40), Woodbridge-Asbury Park (35), Trenton-Camden (30), Trenton-Asbury Park (60), Camden-Asbury Park (55), Camden-Cape May (85), Asbury Park-Atlantic City (75), and Atlantic City-Cape May (45). In Part (B), the edge weights represent tolls: Newark-Woodbridge ($0.60), Woodbridge-Trenton ($1.00), Woodbridge-Camden ($0.00), Woodbridge-Asbury Park ($0.75), Trenton-Camden ($0.70), Trenton-Asbury Park ($0.00), Camden-Asbury Park ($1.25), Camden-Cape May ($0.00), Asbury Park-Atlantic City ($1.25), and Atlantic City-Cape May ($0.75).

Find a shortest route in distance between Newark and Camden, and between Newark and Cape May, using these roads. (June-2024)


Q.9) Find a least expensive route in terms of total tolls using the roads in the graph between the pairs of cities in part (A). (June-2024)


Q.10) Write short note on: Tautologies and Contradiction (June-2024)


Q.11) Construct a niche overlap graph for six species of birds, where the hermit thrush competes with the robin and with the blue jay, the robin also competes with the mockingbird, the mockingbird also competes with the blue jay, and the nuthatch competes with the hairy wood-pecker. (Dec-2024)


Q.12) Let $p$ and $q$ be the propositions
$p$ : It is below freezing.
$q$ : It is snowing.
Write these propositions using $p$ and $q$ and logical connectives (including negations).
i) It is below freezing and snowing.
ii) It is below freezing but not snowing.
iii) It is not below freezing and it is not snowing.
iv) It is either snowing or below freezing (or both).
v) If it is below freezing, it is also snowing.
vi) Either it is below freezing or it is snowing, but it is not snowing if it is below freezing.
vii) That it is below freezing is necessary and sufficient for it to be snowing.

(Dec-2024)

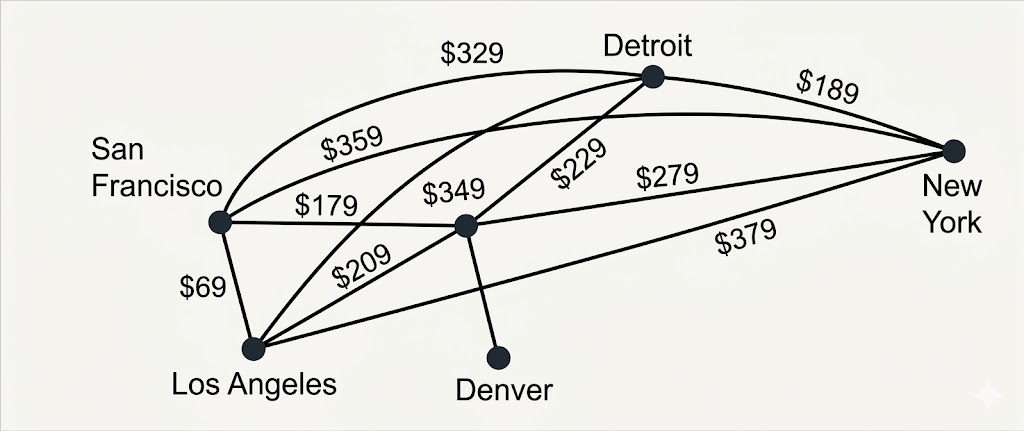

Q.13) Find a route with the least total airfare that visits each of the cities in this graph, where the weight on an edge is the least price available for a flight between the two cities.

An undirected graph representing cities and flight prices. The vertices are San Francisco, Los Angeles, Denver, Detroit, and New York. The edges and their weights (flight prices) are: San Francisco to Los Angeles ($69), San Francisco to Denver ($179), San Francisco to Detroit ($359), San Francisco to New York ($329), Los Angeles to Denver ($209), Los Angeles to New York ($349), Denver to Detroit ($229), Denver to New York ($279), and Detroit to New York ($189).

(Dec-2024)


Q.14) Show that
$((p \lor q) \land \sim(\sim p \land (\sim q \lor \sim r))) \lor (\sim p \land \sim q) \lor (\sim p \land \sim r) \equiv \text{T}$
is a tautology by laws of algebra of propositions. (Nov-2023)


Q.15) Obtain the conjunctive normal form of
i) $p \land (p \Rightarrow q)$
ii) $\sim p \Rightarrow [r \land (p \Rightarrow q)]$ (Nov-2023)

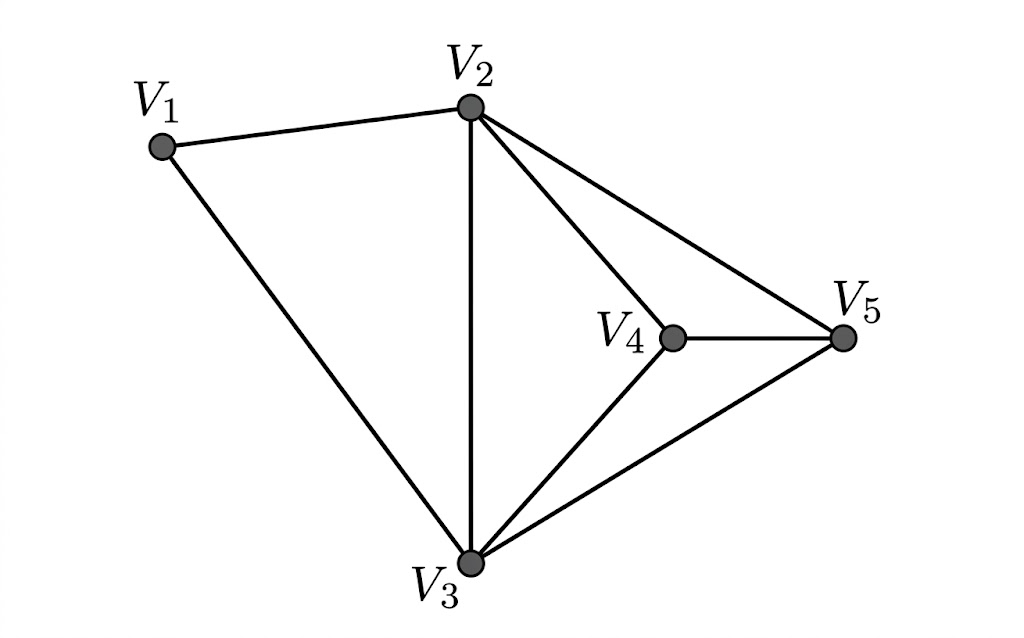

Q.16) Check for Euler and Hamiltonian graphs:

An undirected graph with 5 vertices labeled V1, V2, V3, V4, and V5. The edges connect the following pairs of vertices: V1 is connected to V2 and V3. V2 is connected to V1, V3, V4, and V5. V3 is connected to V1, V2, and V4. V4 is connected to V2, V3, and V5. V5 is connected to V2 and V4.

(Nov-2023)


Q.17) What is coloring problem? Hence define coloring of graph. (Nov-2023)



Unit 4: Matrices


Determinant and Trace, Cholesky Decomposition, Eigen decomposition, Singular Value decomposition(SVD), Gradient of a matrix: Useful identities For computing Gradient.



Previous Years questions appears in RGPV exam.

Q.1) Solve the equations
$6x + 15y + 55z = 76$,
$15x + 55y + 225z = 295$,
$55x + 225y + 979z = 1259$
Using Cholesky decomposition method. (June-2023)


Q.2) Find singular value decomposition composition for for $A = \begin{bmatrix} 1 & 0 & 1 \\ -1 & 1 & 0 \end{bmatrix}.$ (June-2023)


Q.3) Calculate the gradient of the function $f(X) = Tr(X^T X)$ where X is a matrix. (June-2024)


Q.4) Write a short note on Cholesky Decomposition. (June-2024)


Q.5) Given a matrix F with SVD $F = U\Sigma V^T$, where:
$$U = \begin{pmatrix} 1 & 0 \\ 0 & 1 \end{pmatrix}, \Sigma = \begin{pmatrix} 2 & 0 \\ 0 & 3 \end{pmatrix}, V = \begin{pmatrix} 1 & 0 \\ 0 & 1 \end{pmatrix}$$
Find the original matrix F. (Dec-2024)


Q.6) Find the Determinant and trace of the matrix:
$$\begin{pmatrix} 2 & -1 & 0 \\ 3 & 4 & 2 \\ 1 & 0 & -3 \end{pmatrix}$$ (Dec-2024)


Q.7) Using Cholesky decomposition, Verify that whether the following matrix is positive definite or not. (Dec-2024)


Q.8) Write short note on: Eigen decomposition. (Dec-2024)


Q.9) Solve the simultaneous equations:
$25x + 15y - 5z = 35$
$15x + 18y + 0.z = 33$
$-5x + 0.y + 11z = 6$
Using Cholesky Decomposition. (Nov-2023)


Q.10) Find the singular value decomposition of the matrix:
$$A = \begin{bmatrix} -4 & -7 \\ 1 & 4 \end{bmatrix}$$ (Nov-2023)



Unit 5: Test of Hypothesis


Concept and Formulation, Type-I and Type-II Errors, Time Series Analysis, Analysis of Variance (ANOVA).



Previous Years questions appears in RGPV exam.

Q.1) To test the hypothesis that eating fish makes one smarter, a random sample of 12 persons take a fish oil supplement for one year and then are given an IQ test. Here are the results:
116   111   101   120   99   94   106   115   107   101   110   92
Test using the following hypothesis, report the test statistic with the P-value, then summarize your conclusion.
$H_0: \mu = 100$
$H_a: \mu > 100$ (June-2023)


Q.2) What are the critical values for a one-independent sample non directional (two-tailed) z test at a .05 level of significance? (June-2023)


Q.3) Define Hypothesis. Write a short note on Null Hypothesis and Alternative Hypothesis. (June-2024)


Q.4) Suppose the average salary of a principal in a college in the private sector is Rs. 45,000 per month, and a sample of 50 principals has a mean of Rs. 48,326 with a significance level of $\alpha = 0.05$. Can we claim that principals earn Rs. 45,000 per month, given that the standard deviation of the population is Rs. 1,523? (June-2024)


Q.5) Write short note on: Time Series Analysis (June-2024)


Q.6) Write a detail note on Analysis of Variance. (Dec-2024)


Q.7) A sample of 100 B.Sc. Student is taken from a medical college with height having standard deviation (S.D.= 10 cm). The mean height of sample of student is found 168.8 cm. Can we accept that the mean height of student is 170 cm. Justify your answer. (Dec-2024)


Q.8) Write short note on: Type-I and Type-II Errors. (Dec-2024)


Q.9) What is null hypothesis? What is its significance in statistical variance? (Nov-2023)


Q.10) An agricultural research organization wants to study the effect of four types of fertilizers on the yield of crop. It divided the entire field into 24 plots of land and used fertilizer at random in 6 plots of land. Part of calculations are given below:

Source of VariationSum of SquaresDegree of freedomMean SquaresTest Statistic
fertilizers29403-5.99
Within groups---
Total6212

i) Fill in the blanks in the ANOVA table.
ii) Test at $\alpha = 0.5$, whether the fertilizers differ significantly. (Nov-2023)


Q.11) A coin was tossed 400 times and the head turned up 216 times. Test the hypothesis that the coin is unbiased. (Nov-2023)
